ProtocolPP::jbuffer< T, Q > Class Template Reference

Public Member Functions
	jbuffer (std::shared_ptr< InterfacePP::jlogger > &logger)
	jbuffer (int numbufs, std::shared_ptr< InterfacePP::jlogger > &logger)
	jbuffer (jbuffer &rhs, std::shared_ptr< InterfacePP::jlogger > &logger)
	jbuffer (const jbuffer &rhs, std::shared_ptr< InterfacePP::jlogger > &logger)
	~jbuffer ()
	standard destructor
void	enqueue (uintptr_t bufptr)
std::pair< bool, uintptr_t >	dequeue (uint32_t buffers, uintptr_t bufptr=0)
void	write (uintptr_t bufptr, T *data, uint32_t length, uint32_t offset=0)
void	write (uintptr_t bufptr, jarray< T > &data, uint32_t offset=0)
void	write (uintptr_t bufptr, std::shared_ptr< jarray< T >> &data, uint32_t offset=0)
void	read (uintptr_t bufptr, T *data, uint32_t length, uint32_t offset=0)
void	read (uintptr_t bufptr, jarray< T > &data, uint32_t offset=0)
void	read (uintptr_t bufptr, std::shared_ptr< jarray< T >> &data, uint32_t offset=0)

Constructor & Destructor Documentation

jbuffer() [1/4]

template<typename T , std::size_t Q>

jbuffer::jbuffer ( std::shared_ptr< InterfacePP::jlogger > &  logger )

explicit

standard constructor for 16k buffers of size Q

Parameters

logger

- logging object

jbuffer() [2/4]

template<typename T , std::size_t Q>

jbuffer::jbuffer	(	int	numbufs,
		std::shared_ptr< InterfacePP::jlogger > &	logger
	)

constructor for number of buffers of size Q

Parameters

numbufs	- number of buffers to create in memory
logger	- logging object

jbuffer() [3/4]

template<typename T , std::size_t Q>

jbuffer::jbuffer	(	jbuffer< T, Q > &	rhs,
		std::shared_ptr< InterfacePP::jlogger > &	logger
	)

copy constructor

Parameters

rhs	- buffman to copy
logger	- logging object

jbuffer() [4/4]

template<typename T , std::size_t Q>

jbuffer::jbuffer	(	const jbuffer< T, Q > &	rhs,
		std::shared_ptr< InterfacePP::jlogger > &	logger
	)

const copy constructor

Parameters

rhs	- CONST buffman to copy
logger	- logging object

Member Function Documentation

dequeue()

template<typename T , std::size_t Q>

std::pair< bool, uintptr_t > jbuffer::dequeue	(	uint32_t	buffers,
		uintptr_t	bufptr = 0
	)

allocates buffers from the memory

Parameters

buffers	- number of buffers requested from memory
bufptr	- if provided, add buffers to the link list pointed to by bufptr

Returns

- Pointer to beginning buffer

Here is the call graph for this function:

enqueue()

template<typename T , std::size_t Q>

void jbuffer::enqueue

(

uintptr_t

bufptr

)

release buffers back to the memory

Parameters

bufptr

- releases all buffers pointed to by bufptr after scrubbing and zeroizing

Here is the call graph for this function:

read() [1/3]

template<typename T , std::size_t Q>

void jbuffer::read	(	uintptr_t	bufptr,
		jarray< T > &	data,
		uint32_t	offset = 0
	)

read data from buffers at offset

Parameters

bufptr	- pointer to the start of the buffers
data	- pointer to hold output data
offset	- offset into buffers to start reading

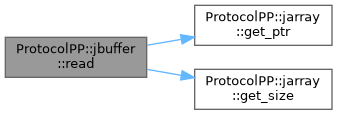

Here is the call graph for this function:

read() [2/3]

template<typename T , std::size_t Q>

void jbuffer::read	(	uintptr_t	bufptr,
		std::shared_ptr< jarray< T >> &	data,
		uint32_t	offset = 0
	)

read data from buffers at offset

Parameters

bufptr	- pointer to the start of the buffers
data	- pointer to hold output data
offset	- offset into buffers to start reading

read() [3/3]

template<typename T , std::size_t Q>

void jbuffer::read	(	uintptr_t	bufptr,
		T *	data,
		uint32_t	length,
		uint32_t	offset = 0
	)

read data from buffers at offset

Parameters

bufptr	- pointer to the start of the buffers
data	- pointer to hold output data
length	- length of data to read
offset	- offset into buffers to start reading

write() [1/3]

template<typename T , std::size_t Q>

void jbuffer::write	(	uintptr_t	bufptr,
		jarray< T > &	data,
		uint32_t	offset = 0
	)

write data to buffers at offset

Parameters

bufptr	- pointer to the start of the buffers
data	- data to write
offset	- offset into buffers to start writing

Here is the call graph for this function:

write() [2/3]

template<typename T , std::size_t Q>

void jbuffer::write	(	uintptr_t	bufptr,
		std::shared_ptr< jarray< T >> &	data,
		uint32_t	offset = 0
	)

write data to buffers at offset

Parameters

bufptr	- pointer to the start of the buffers
data	- data to write
offset	- offset into buffers to start writing

write() [3/3]

template<typename T , std::size_t Q>

void jbuffer::write	(	uintptr_t	bufptr,
		T *	data,
		uint32_t	length,
		uint32_t	offset = 0
	)

write data to buffers at offset

Parameters

bufptr	- pointer to the start of the buffers
data	- data to write
length	- length of data to write
offset	- offset into buffers to start writing

Here is the call graph for this function:

---

The documentation for this class was generated from the following file:

• include/jbuffer.h
