Public Member Functions
	jarray ()
	Standard constructor for jarray class.

	jarray (uint32_t size)

	jarray (std::initializer_list< T > init)

	jarray (uint32_t size, T value, endian_t format=BIG)

	jarray (const jarray< T > &rhs, endian_t format=BIG)

	jarray (const std::string &rhs, endian_t format=BIG, bool encoded=false)

	jarray (const std::vector< T > &rhs, endian_t format=BIG)

	jarray (const T *rhs, uint32_t size, endian_t format=BIG)

	jarray (const std::shared_ptr< jarray< T >> &rhs, endian_t format=BIG)

template<typename TT >
	jarray (jarray< TT > &rhs, endian_t format=BIG)

	~jarray ()=default
	Standard deconstructor for jarray.

uint32_t	get_size ()

bool	empty ()

jarray< T >	split (uint32_t elements)

jarray< T >	extract (uint32_t index, uint32_t elements)

void	push_back (T rhs)

void	pop_back ()

void	resize (uint32_t newsize)

void	append (jarray< T > rhs)

void	append (T *rhs, uint32_t rhs_size)

void	append (std::initializer_list< T > rhs)

void	insert (uint32_t index, jarray< T > &rhs)

void	update (uint32_t index, jarray< T > &rhs)

void	erase (uint32_t index, uint32_t elements)

void	intersect (jarray< T > &rhs)

void	reverse ()
	Method to reverse the elements of the array.

T *	get_ptr ()

const T *	get_ptr () const

std::shared_ptr< jarray< T > >	get_shared ()

const std::shared_ptr< jarray< T > >	get_shared () const

std::string	to_string (bool printable=false, int indent=10, bool xml=false)

std::string	debug (jarray< T > &expect, int indent=10)

bool	operator== (jarray< T > &rhs)

bool	operator== (const jarray< T > &rhs) const

bool	operator!= (jarray< T > &rhs)

bool	operator!= (const jarray< T > &rhs) const

void	operator^= (jarray< T > &rhs)

void	operator\|= (jarray< T > &rhs)

void	operator&= (jarray< T > &rhs)

void	operator*= (jarray< T > &rhs)

void	operator+= (jarray< T > &rhs)

T &	operator[] (uint32_t index)

const T &	operator[] (uint32_t index) const

endian_t	get_format ()

void	serase ()
	Method to scrub array in memory.

Constructor & Destructor Documentation

◆ jarray() [1/9]

template<typename T >

jarray::jarray ( uint32_t size )

explicit

Constructor for jarray initialized to size

Parameters

size	- size to initialize the array to

◆ jarray() [2/9]

template<typename T >

jarray::jarray ( std::initializer_list< T > init )

Constructor for jarray initialized to size with value

Parameters

init	- initializer list in curly braces myarr<uint8_t> {0x10, 0x1E};

◆ jarray() [3/9]

template<typename T >

jarray::jarray	(	uint32_t	size,
		T	value,
		endian_t	format = `BIG`
	)

Constructor for jarray initialized to size with value

Parameters

size	- size to initialize the array to
value	- value to initialize the array to
format	- endianness of the constructed array (BIG, LITTLE)

◆ jarray() [4/9]

template<typename T >

jarray::jarray	(	const jarray< T > &	rhs,
		endian_t	format = `BIG`
	)

Copy Constructor for jarray

Parameters

rhs	- array to copy
format	- endianness of the constructed array (BIG, LITTLE)

◆ jarray() [5/9]

template<typename T >

jarray::jarray	(	const std::string &	rhs,
		endian_t	format = `BIG`,
		bool	encoded = `false`
	)

explicit

Constructor for jarray from a string

Parameters

rhs	- string to populate the array with
format	- endianness of the constructed array (BIG, LITTLE)
encoded	- Input string has already been encoded as HEX characters instead of being a simple string. For example, if the input string had been encoded as bytes each character in the string would be equal to something like '0x6C' or '0xAE'. If the input was a simple string each character would represent a single value such that the string "123ABC" is really "1", "2" "3", "A", "B", "C" and needs to be converted and grouped into HEX such that the resulting array has "0x12", "0x3A", and "0xBC". The Crypto++ library uses encoded strings. Set encoded to true to read in ASCII characters

Here is the call graph for this function:

◆ jarray() [6/9]

template<typename T >

jarray::jarray	(	const std::vector< T > &	rhs,
		endian_t	format = `BIG`
	)

explicit

Constructor for jarray from a standard vector

Parameters

rhs	- vector to initialize the array with
format	- endianness of the constructed array (BIG, LITTLE)

◆ jarray() [7/9]

template<typename T >

jarray::jarray	(	const T *	rhs,
		uint32_t	size,
		endian_t	format = `BIG`
	)

Constructor for jarray from a uint8_t raw pointer and size

Parameters

rhs	- byte pointer to initialize the array with
size	- length of the data to convert
format	- endianness of the constructed array (BIG, LITTLE)

◆ jarray() [8/9]

template<typename T >

jarray::jarray	(	const std::shared_ptr< jarray< T >> &	rhs,
		endian_t	format = `BIG`
	)

explicit

Constructor for jarray from a shared pointer

Parameters

rhs	- byte pointer to initialize the array with
format	- endianness of the constructed array (BIG, LITTLE)

◆ jarray() [9/9]

template<typename T >

template<typename TT >

jarray::jarray	(	jarray< TT > &	rhs,
		endian_t	format = `BIG`
	)

explicit

Constructor for jarray from one type to another

Parameters

rhs	- initial array to convert. Conversion is to type of array that is being constructed. Example: jarray<uint32_t> oldarray("AABBCCDD"); jarray<uint8_t> newarray(oldarray, LITTLE); newarray.to_sting(); "DDCCBBAA" jarray ProtocolPP::LITTLE @ LITTLE Little endian with formatting as b[0]b[1]b[2]b[3]. Definition: jenum.h:1212
format	- endianness of the constructed array (BIG, LITTLE)

Here is the call graph for this function:

Member Function Documentation

◆ append() [1/3]

template<typename T >

void jarray::append ( jarray< T > rhs )

Method to add the array rhs to the current array

Parameters

rhs	- array to add to this array

Here is the call graph for this function:

◆ append() [2/3]

template<typename T >

void jarray::append ( std::initializer_list< T > rhs )

Method to add the array rhs to the current array

Parameters

rhs	- initializer list to add to this array

◆ append() [3/3]

template<typename T >

void jarray::append	(	T *	rhs,
		uint32_t	rhs_size
	)

Method to add the array rhs to the current array

Parameters

rhs	- pointer to array to add to this array
rhs_size	- length of the array pointed to by rhs

◆ debug()

template<typename T >

std::string jarray::debug	(	jarray< T > &	expect,
		int	indent = `10`
	)

Method to compare arrays side by side for debug as shown below prints to std::err

AAAABBBB_CCCCDDDD_EEEEFFFF_00001111     AAAABBBB_CCCCDDDD_EEEEFFFF_00001111
22223333_44445555_66667777_88889999     22223333_44445555_66667777_FE889999 <-- MISMATCH
22223333_44445555_66667777_88889999     22223333_44445555_66667777_FE889999 <-- MISMATCH
22223333_44445555_66667777_88889999     22223333_44445555_66667777_FE889999 <-- MISMATCH
22223333_44445555_66667777_88889999     22223333_44445555_66667777_FE889999 <-- MISMATCH
22223333_44445555_66667777_88889999     22223333_44445555_66667777_FE889999 <-- MISMATCH
22223333_44445555_66667777_88889999     22223333_44445555_66667777_FE889999 <-- MISMATCH
22223333_44445555_66667777_88889999     22223333_44445555_66667777_FE889999 <-- MISMATCH
22223333_44445555_66667777_88889999     22223333_44445555_66667777_FE889999 <-- MISMATCH
22223333_44445555_66667777_88889999     22223333_44445555_66667777_FE889999 <-- MISMATCH
22223333_44445555_66667777_88889999     22223333_44445555_66667777_88889999

Parameters

expect	- Expected data to print
indent	- default indentation for pretty printing

Returns: string representation of this array

Here is the call graph for this function:

◆ empty()

template<typename T >

bool jarray::empty

Method to determine if the array is empty

Returns: True/False if araay is empty

◆ erase()

template<typename T >

void jarray::erase	(	uint32_t	index,
		uint32_t	elements
	)

Method to remove the elements from the array starting at index and continuing for size. The original array is reduced by the number of elements requested

Parameters

index	- location to start erasing elements
elements	- number of elements to remove from this array

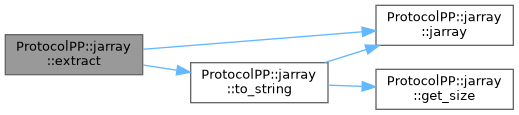

◆ extract()

template<typename T >

jarray< T > jarray::extract	(	uint32_t	index,
		uint32_t	elements
	)

Method to extract the number of elements from the array starting at the start value

Parameters

index	- index to start the extraction
elements	- number of elements to split from the array

Returns: new array containing the split off values

◆ get_format()

template<typename T >

endian_t jarray::get_format

Method to return endianness format of this array

Returns: endianness format for this array

◆ get_ptr() [1/2]

template<typename T >

T * jarray::get_ptr

Method to return the pointer to the underlying data object of the array

Returns: pointer to the data object

◆ get_ptr() [2/2]

template<typename T >

const T * jarray::get_ptr

Method to return the pointer to the underlying data object of the array

Returns: pointer to the data object

◆ get_shared() [1/2]

template<typename T >

std::shared_ptr< jarray< T > > jarray::get_shared

Method to return the shared pointer of the array

Returns: shared pointer to the data object

◆ get_shared() [2/2]

template<typename T >

const std::shared_ptr< jarray< T > > jarray::get_shared

Method to return the shared pointer of the array

Returns: shared pointer to the data object

◆ get_size()

template<typename T >

uint32_t jarray::get_size

Method to retrieve size of this array

Returns: Size of the array

◆ insert()

template<typename T >

void jarray::insert	(	uint32_t	index,
		jarray< T > &	rhs
	)

Method to insert the array rhs into this array starting at index The array is resized to accomodate this array plus the new array No elements of the original array are overwritten

Parameters

index	- location to start the insertion
rhs	- array to insert into this array

Here is the call graph for this function:

◆ intersect()

template<typename T >

void jarray::intersect ( jarray< T > & rhs )

Method to intersect two arrays and return the shared valeus in both arrays

Parameters

rhs	- array to intersect with this array (retains shared values)

Here is the call graph for this function:

◆ operator!=() [1/2]

template<typename T >

bool jarray::operator!= ( const jarray< T > & rhs ) const

Method to compare two different arrays. First compares array size then iterates through all array values and compares them for inequality

Parameters

rhs	- array to compare with this array

Returns: true/false value for array comparison

◆ operator!=() [2/2]

template<typename T >

bool jarray::operator!= ( jarray< T > & rhs )

Method to compare two different arrays. First compares array size then iterates through all array values and compares them for inequality

Parameters

rhs	- array to compare with this array

Returns: true/false value for array comparison

◆ operator&=()

template<typename T >

void jarray::operator&= ( jarray< T > & rhs )

Method to AND two different arrays

Parameters

rhs	- array to AND with this array

Here is the call graph for this function:

◆ operator*=()

template<typename T >

void jarray::operator*= ( jarray< T > & rhs )

Method to MULTIPLY two different arrays

Parameters

rhs	- array to MULTIPLY with this array

Here is the call graph for this function:

◆ operator+=()

template<typename T >

void jarray::operator+= ( jarray< T > & rhs )

Method to ADD two different arrays

Parameters

rhs	- array to ADD with this array

Here is the call graph for this function:

◆ operator==() [1/2]

template<typename T >

bool jarray::operator== ( const jarray< T > & rhs ) const

Method to compare two different arrays. First compares array size then iterates through all array values and compares them for equality

Parameters

rhs	- array to compare with this array

Returns: true/false value for array comparison

Here is the call graph for this function:

◆ operator==() [2/2]

template<typename T >

bool jarray::operator== ( jarray< T > & rhs )

Method to compare two different arrays. First compares array size then iterates through all array values and compares them for equality

Parameters

rhs	- array to compare with this array

Returns: true/false value for array comparison

Here is the call graph for this function:

◆ operator[]() [1/2]

template<typename T >

T & jarray::operator[] ( uint32_t index )

Method to return array value at index

Parameters

index - location of array element to return

Returns: array element at index

◆ operator[]() [2/2]

template<typename T >

const T & jarray::operator[] ( uint32_t index ) const

Method to return const array value at index

Parameters

index - location of array element to return

Returns: const array element at index

◆ operator^=()

template<typename T >

void jarray::operator^= ( jarray< T > & rhs )

Method to XOR two different arrays

Parameters

rhs	- array to XOR with this array

Here is the call graph for this function:

◆ operator|=()

template<typename T >

void jarray::operator|= ( jarray< T > & rhs )

Method to OR two different arrays

Parameters

rhs	- array to OR with this array

Here is the call graph for this function:

◆ pop_back()

template<typename T >

void jarray::pop_back

Method to removed the last element from the array. The element is destroyed in the process

◆ push_back()

template<typename T >

void jarray::push_back ( T rhs )

Method to add a single element to the end of the array

Parameters

rhs	- element to add to this array

◆ resize()

template<typename T >

void jarray::resize ( uint32_t newsize )

Method to change the array size

Parameters

newsize - either shrink or expand the array to the new size

◆ split()

template<typename T >

jarray< T > jarray::split ( uint32_t elements )

Method to split the number of elements from the front of the array and return it to the caller. The original array is reduced by the number of elements split from it

Parameters

elements - number of elements to split from the array

Returns: new array containing the split off values

Here is the call graph for this function:

◆ to_string()

template<typename T >

std::string jarray::to_string	(	bool	printable = `false`,
		int	indent = `10`,
		bool	xml = `false`
	)

Method to convert this array into a string representation for printing purposes. Output is formatted either as a single, long string of HEX characters if 'printable' is false or is a pretty printed 16-bytes across with underscores as follows if 'printable' is true

[AAAABBBB_CCCCDDDD_EEEEFFFF_00001111
 22223333_44445555_66667777_88889999
 22223333_44445555_66667777_88889999
 22223333_44445555_66667777_88889999
 22223333_44445555_66667777_88889999
 22223333_44445555_66667777_88889999
 22223333_44445555_66667777_88889999]

Parameters

printable	- if false, output is a single string of HEX characters. If true, enables pretty_printing of the array with formatting
indent	- default indentation for pretty printing ignored if printable is false
xml	- Print as an XML data object as found below * 22223333444455556666777788889999 * 2222333344445555666677778888 *

Returns: string representation of this array

Here is the call graph for this function:

◆ update()

template<typename T >

void jarray::update	(	uint32_t	index,
		jarray< T > &	rhs
	)

Method to update the array rhs into this array starting at index The array is resized to accomodate this array plus the new array Elements of the original array starting at index and extending for the length of rhs are overwritten with the new values

Parameters

index	- location to start the update
rhs	- array to update this array with

Here is the call graph for this function:

The documentation for this class was generated from the following file:

include/jarray.h

Public Member Functions

Constructor & Destructor Documentation

◆ jarray() [1/9]

◆ jarray() [2/9]

◆ jarray() [3/9]

◆ jarray() [4/9]

◆ jarray() [5/9]

◆ jarray() [6/9]

◆ jarray() [7/9]

◆ jarray() [8/9]

◆ jarray() [9/9]

Member Function Documentation

◆ append() [1/3]

◆ append() [2/3]

◆ append() [3/3]

◆ debug()

◆ empty()

◆ erase()

◆ extract()

◆ get_format()

◆ get_ptr() [1/2]

◆ get_ptr() [2/2]

◆ get_shared() [1/2]

◆ get_shared() [2/2]

◆ get_size()

◆ insert()

◆ intersect()

◆ operator!=() [1/2]

◆ operator!=() [2/2]

◆ operator&=()

◆ operator*=()

◆ operator+=()

◆ operator==() [1/2]

◆ operator==() [2/2]

◆ operator[]() [1/2]

◆ operator[]() [2/2]

◆ operator^=()

◆ operator|=()

◆ pop_back()

◆ push_back()

◆ resize()

◆ split()

◆ to_string()

◆ update()
